節能材料





節能產品分為三種:

     1.功能性奈米粉體分散液

     2.功能性奈米塗料

     3.節能膜

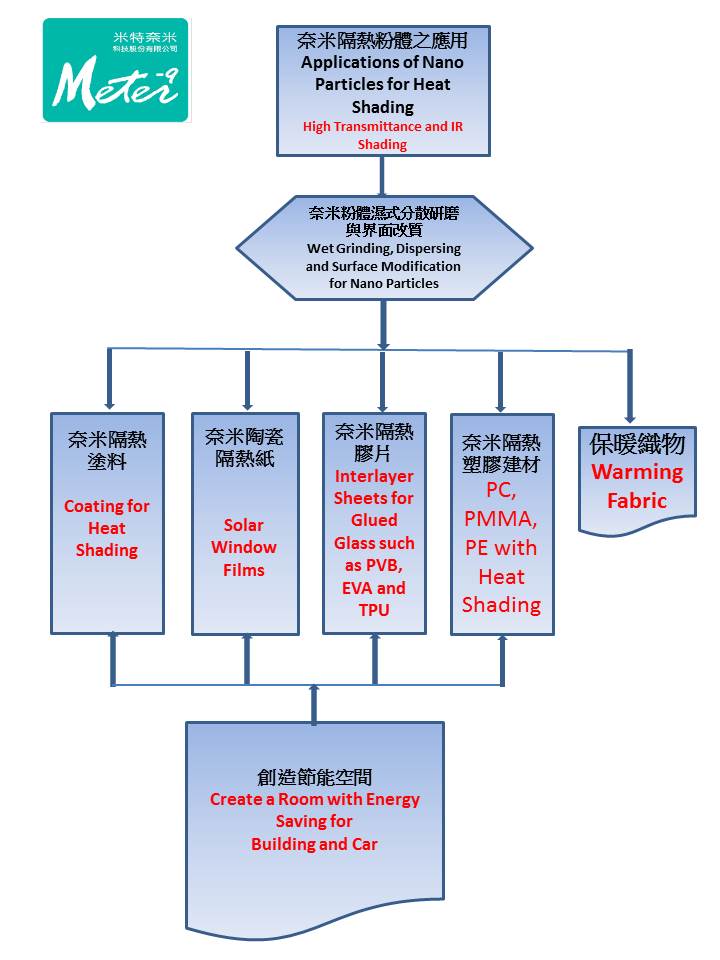

     We have several products of Energy Saving materials including Tungsten Oxide (CWO), ATO, Carbon Black, etc. The products were divided into suspensions, paints and Energy Saving Film. There are two types in these suspensions, they are UV and thermal type. In UV type suspensions, user could add UV resins to these suspensions and form the UV energy saving paints. In thermal type suspensions, one could add thermal resins or PSA to these suspensions and then form the thermal energy saving paints. The detail was described below:



1.功能性奈米粉體分散液
   suspensions of functional nano particles

品名

(Products)

產品型號

(Model)

固含量
(Solid
cont.)

產品描述
(Spec. & solvents contained)
氧化鎢分散液
Suspension of Tungsten Oxide(CWO)

MESM01             (中文  英文)
20/30%
UV固化型塗料專用分散液
UV curing, PMA
氧化鎢分散液
Suspension of Tungsten Oxide(CWO)

20/30%
熱固化型(Thermal curing)專用
PMA, Toluene, EAC, IBA
可添加於PSA,PVB,EVA,TPU等膠料中
氧化鎢分散液
Suspension of Tungsten Oxide(CWO)


20%

水性,發熱紡織品適用
Water base, suitable for fabric coating
ATO分散液
Suspension of ATO
40%
PMA, EAC, Toluene
ATO分散液
Suspension of ATO
30%
水性
water base





2.功能性奈米塗料   Functional nano coatings
品名

(Products)
產品型號

(Model)
固含量
(Solid cont.)
產品描述

(Spec.)
玻璃隔熱塗料
Paint of CWO for Glass Coating


--
玻璃噴塗專用
For Glass Coating by Spray

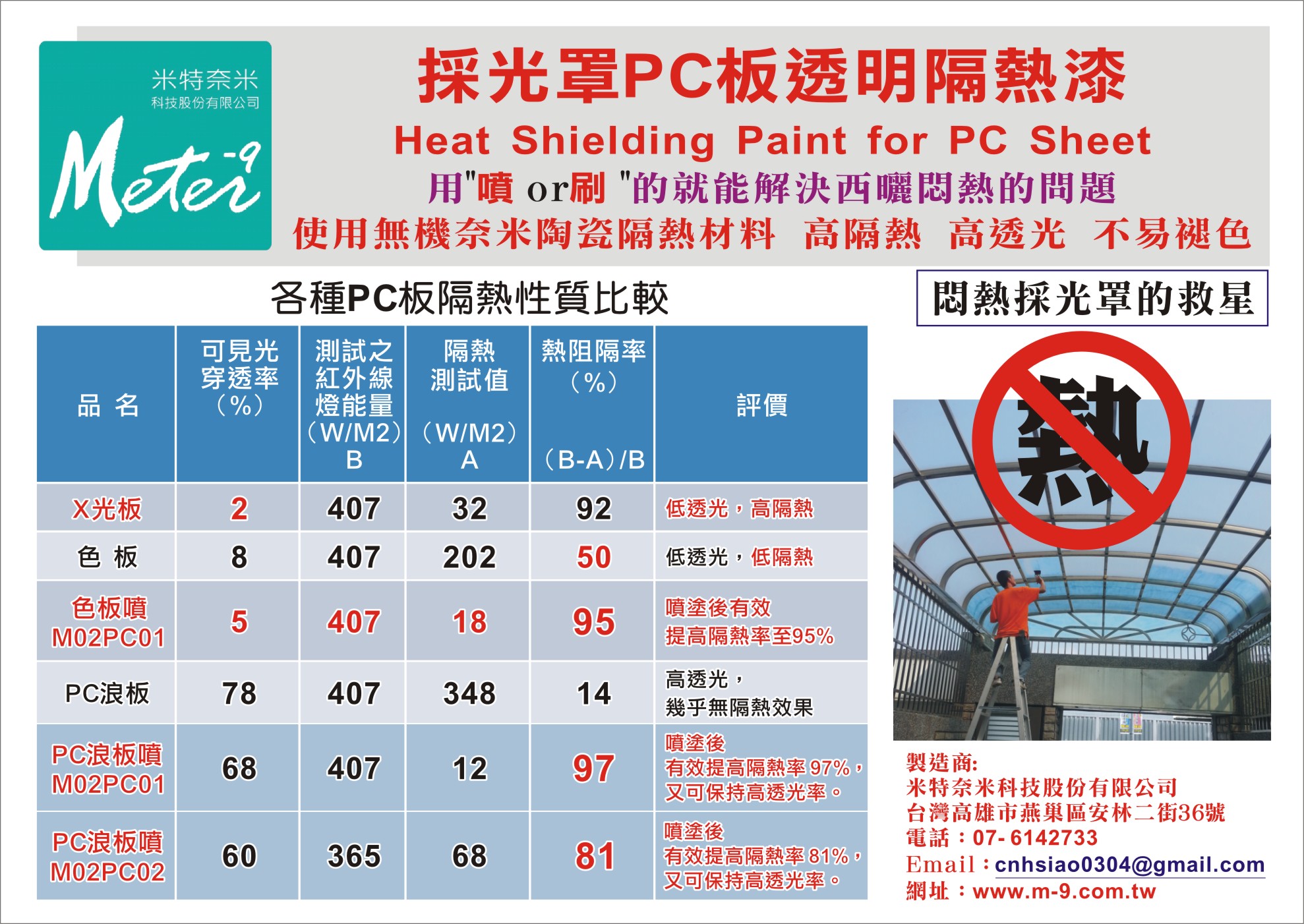

採光罩 PC板專用透明隔熱塗料                 (氧化鎢PC用塗料)
Paint of CWO for PC Coating



--
PC噴塗專用
For PC coating by Spray
氧化鎢PSA塗料
Paint of CWO with PSA
--
節能膜貼合製程專用(2-PLY)
Using in glued processing for 2-ply solar window film
氧化鎢膠合玻璃用膜專用塗料
Paint of solar window film using in glued glass
MESM02C
--
節能膠合玻璃專用
This film Using in glued glass with energy saving function
氧化鎢UV硬面塗料
Paint of CWO with UV Hard coat Resin

--
硬面節能膜(1-PLY)
Using in 1-ply solar window film









3.節能膜   Soalr window films
品名
(Products)
產品型號
(Model)
產品描述
(Spec.)
節能膜(黑色)

VLT:35%;IRC:97%;UVC:98%.
1520mm,:30M/.
節能膜(藍色)
VLT:70%;IRC:90%;UVC:98%.
1520mm,:30M/.
膠合玻璃專用膜

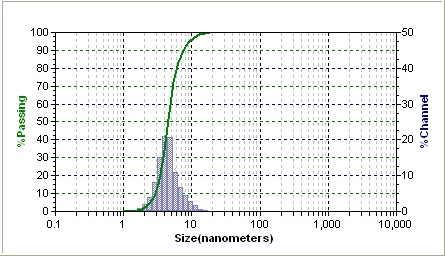

Particle size distribution










High Blue Haze after coating, due to

bad suspension and large particle

Size distribution of nano powder.





Our product, low blue haze, due to
excellent suspension and small particle
Size distribution.

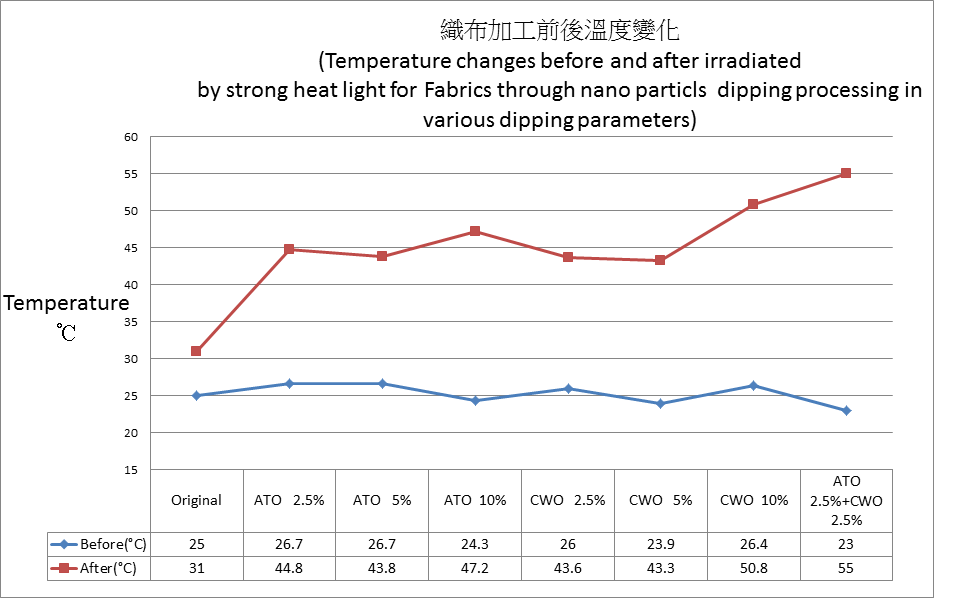

奈米隔熱粒子(氧化鎢,ATO) 應用於保暖織物之測試
